TY4 Crane mounted Four Barrels Clamp Hoist Capacity 2000Kg

Name: TY4 Crane mounted Four Barrels Clamp Hoist Capacity 2000Kg
Brand: sinolift
Price: 1 USD

Wholesale TY4 Crane mounted Four Barrels Clamp Hoist Capacity 2000Kg from china suppliers

Brand Name : sinolift

Model Number : TY4

Certification : CE,ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : TY4 Crane mounted Four Barrels Clamp Hoist Capacity 2000Kg

Model : TY4

Capacity : 2000Kg

Barrel Type : steel ,plastic,fiber

Length : 630mm

Height : 540mm

Service Weight : 125kg

Warranty : 1 year

After Service : On-line service,Spare parts

Contact Now

Feature:

With large handling clamp. It can handle no less than 4 drums, it can handle more types of barrels, including steel, plastics, fiber barrels, work in vertical direction

1. Unique Eagle-grip structure, with automatic adjusting core frame, which is speedy and safe

2. All mechanical automatic clamping mechanisms handle from one to four drums at one time.

3. Auto mechanical operation. Other hydraulic or electric connector are no need.
4. Fixture can directly link to any suitable driving or electric hoist’s top hook.

Model		TY4
Load Capacity	kg	500*4
Barrel Type		steel ,plastic,fiber
Length	mm	630
Width	mm	630
Height	mm	540
Service Weight	kg	125

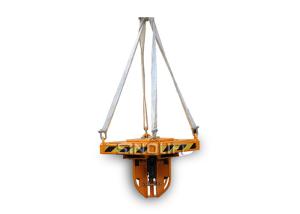

TY4 Crane mounted Four Barrels Clamp Hoist Capacity 2000Kg Images
