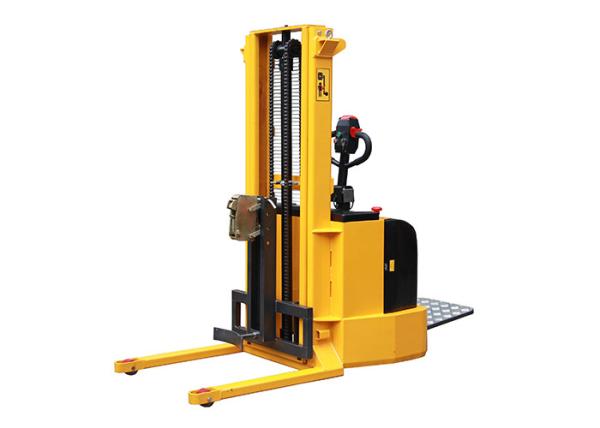

YL600B Electric Drum Handler Oil Drum Lifter Capacity 600kg

Product Categories

Shanghai Sinolift Mechanical and Electrical Equipment Co., Ltd.

Contact Now

Name: YL600B Electric Drum Handler Oil Drum Lifter Capacity 600kg
Brand: Sinolift
Price: 1 USD

Brand Name : Sinolift

Model Number : YL600B

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product Name : YL600B Electric Drum Handler Oil Drum Lifter Capacity 600kg

Drive Type : Full electric

Capacity : 600kg

Lifting height : 2400mm

Turning Radius : 1710mm

Controlling Type : Electromagnetic braking

Battery voltage/capacity : 24V/210Ah

Charger : 24/30V/A

Drive Motor Power : 1.2KW

Lifting Motor Power : 2.2KW

Net weight : 635KG

Warranty : 1 year

Contact Now

Feature:

1. Power drive, transport, lift and tilt 55 gallon steel drums.

2. Available to carry the drum to rack (lower than 2400mm).

3. Imported electrical vehicle exclusive walking control system.

4. Can be operated by one people, labor saving and high work efficiency.

5. With stepless speed regulator, high-power reversing switch, integrated hydraulic pump stations, power walking driving wheel.

Specification:

Model		YL600B
Drive Type		Full Electric
Operating Type		Standing operation
Rated Load Capacity	kg	600
Drum Size		55 gallon (Ф572×900) steel
Lifting Height	mm	2400
Turning Radius	mm	1710
Max. Gradeability (Laden/Unladen)	%	3/5
Driving Wheel Size	mm	Ø250*80
Tire	/	Polyurethane
Controlling Type	/	Electromagnetic braking
Drive Motor Power	kw	1.2
Lifting Motor Power	kw	2.2
Noise level	db(A)	＜70
Battery voltage/capacity	V/Ah	24/210
Charger	V/A	24/30
Net weight	kg	635
