NP Series Hand Pallet Truck

Brand Name : SINOLIFT

Model Number : NP

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : $410

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 30 days

Packaging Details : Standard export packaging

Prodct name : NP Series Hand Pallet Truck

Rated capacity : 1000-3000kg

Fork length : 1150mm

Forkwidth : 460/520/685mm

Min. Height : 80mm

Max. Height : 200mm

Steer wheel : 18X62mm

Load Wheel : 78X100mm

Material : Special Steel

Weight : 66-100kg

Contact Now

SINOLIFT NP Series Hydraulic Hand Pallet Jack

Feature:

Easily Rolls on non marking abrasion resistant polly (Nylon) wheels.

Lift up - Uniform Release Point

Robust Body heavy duty frame Tow Bar.

Pump Piston and Tow Bar return spring.

Heavy Duty Hydraulic Pump – Die Casted One Piece Body.

High Quality Finish with Powered Coated Colour.

High Quality Steering Wheel and Fork Rollers Wheel PU 100% Virgin (Polyurethanes)

Pu wheels 100% / Nylon Wheels Advanced / Cast Iron Wheels- Optional Wheels are also Available.

Specification:

Model Capacity Forkwidth Forklength Min. Height Max. Height Steer wheel Load Wheel Weight
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
NP10-48 1000 460 810 80 200 180*62 78*100 (single) 66
NP10-49 460 980 70
NP10-58 520 810 66
NP10-59 520 980 70
NP10-510 520 1070 71
NP10-511 520 1150 73
NP10-712 685 1220 79
NP15-48 1500 460 810 80 200 180*62 78*100 (single) 66
NP15-49 460 980 70
NP15-58 520 810 66
NP15-59 520 980 70
NP15-510 520 1070 71
NP15-511 520 1150 73
NP15-610 600 1070 77
NP15-76 685 650 68
NP15-710 685 1070 76
NP15- 712 685 1220 79
NP25-58 2500 520 810 80 200 180*62 78*100 (single) or 78*70 (tandem) 67
NP25-59 685 980 71
NP25-510 685 1070 72
NP25-511 520 1150 75
NP25-712 685 1220 80
NP30-510 3000 520 1070 80 200 180*62 78*100 (single) or 78*70 (tandem) 84
NP30-511 520 1150 90
NP30-712 685 1220 100

NP Series Hand Pallet Truck

NP Series Hand Pallet Truck

NP Series Hand Pallet Truck


Wholesale NP Series Hand Pallet Truck from china suppliers

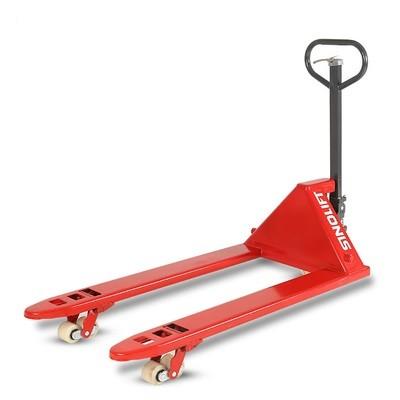

NP Series Hand Pallet Truck Images
