Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling

Name: Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling
Brand: Sinolift
Price: 1 USD

Wholesale Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling from china suppliers

Brand Name : Sinolift

Model Number : CBD20E

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 1000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product name : Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling

Driving style : Pedestrian

Load capacity Q : 2000kg

Load center C : 600mm

Overall length : 1780mm

Overall width : 690mm

Overall height : 1310mm

Power of driving motor : 1.5kw

Power of lift motor : 2.2kw

Net weight : 350kg

Warranty : 1 year

After service : on-line service,free spart parts

Contact Now

The new SINOLIFT E-Series electric pallet trucks, available in 2.0 to 3.0 ton models, are engineered to enhance efficiency in your material handling operations, regardless of your needs. These trucks are easy to operate, providing excellent visibility and productivity while adhering to the highest safety standards. Built on SINOLIFT's legacy of quality and reliability, these electric pallet trucks are user-friendly, highly maneuverable, and safe to use. Primarily utilized in warehouse and industrial environments, the electric pallet truck serves as a fundamental version of a forklift, equipped to handle loads of up to 3,300 kg, making it an optimal choice for your warehouse operations.

1.1	Manufacturer			SINOLI
1.2	Model			CBD20E	CBD25E	CBD30E
1.3	Power Type			Electric	Electric	Electric
1.4	Type of Operation			Stand-on	Stand-on	Stand-on
1.5	Load Capacity/Rated Load	Q	kg	2000	2500	3000
1.6	Load Center Distance	C	mm	600	600	600
1.7	Wheel base	y	mm	1400	1480	1480
2.1	Total Weight (with battery)		kg	585	790	815
3.2	Overall Width	W1	mm	720	790	790
3.3	Fork Dimension	l/e/s	mm	1200×160×50	1220×185×50	1220×185×50
3.4	Width of Fork	b2	mm	540/685	550/685	550/685
3.5	Min. Fork Height	h3	mm	85	85	85
3.6	Lift Height	h2	mm	205	205	205
3.7	Ground Clearance at Center of Wheelbase	m1	mm	35	45	45
3.8	Height of Operating Handlebar (Min./Max.)	h14	mm	1000/1450	1000/1450	1000/1450
3.9	Turning Radius(Pedal Retracted/Expanded)	Wa	mm	1675/2110	1665/2150	1665/2150
4.1	Tyre Type			Polyurethane	Polyurethane	Polyurethane
4.2	Tyre Size (Front)		mm	80x60	80x80	80x80
4.3	Tyre Size (Auxiliary Wheel)		mm	115x55	115x55	115x55
4.4	Tyre Size (Driving Wheel)		mm	230x75	230x75	φ230x75
5.1	Traveling Speed (Laden/Unladen)		km/h	6/6	5/8	5/8
5.2	Lifting Speed (Laden/Unladen)		mm/s	20/25	20/25	20/25
5.3	Lowering Speed (Laden/Unladen)		mm/s	30/26	30/26	30/26
5.4	Max.Gradient Performance (Laden/Unladen)		%	45.00%	45.00%	45.00%
6.1	Drive Motor Rating (AC) S2 60min		kW	1.2	1.5	1.5
6.2	Lift Motor Rating (DC) S3 -15%		kW	0.8	2.2	2.2
6.3	Battery Voltage/Capacity K5		V/Ah	24/210	24/210	24/240
6.4	Battery Weight		kg	188	188	210
7.1	Controller Brand			ZAPI	CURTIS	CURTIS
7.2	Controller Model			AC-0	1232E	1232E

Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling

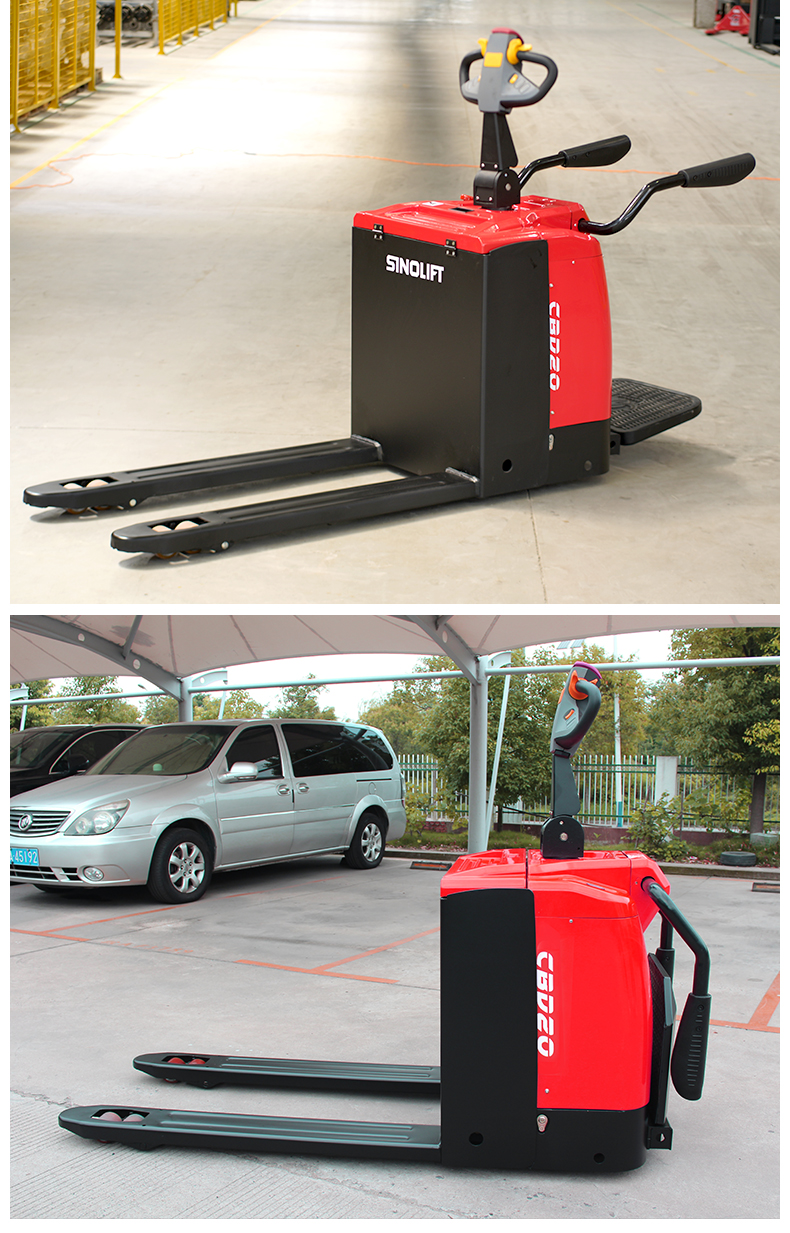

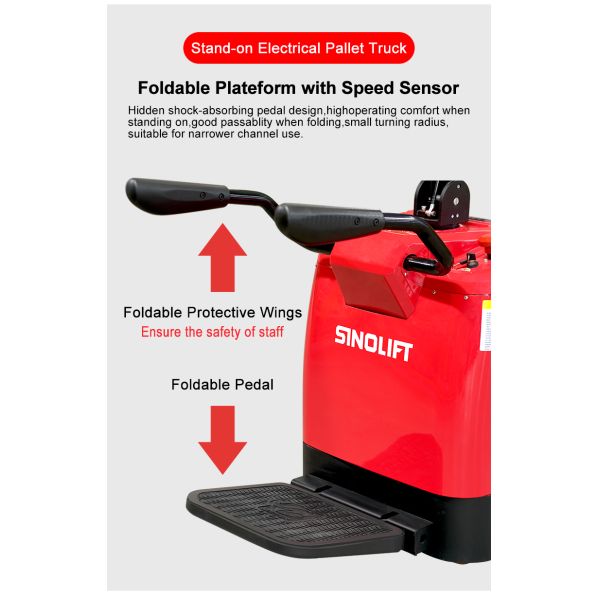

Sinolift China High Power Drive Motor CBD20E CBD25E CBD30E Electric Pallet Jack For Material Handling Images
